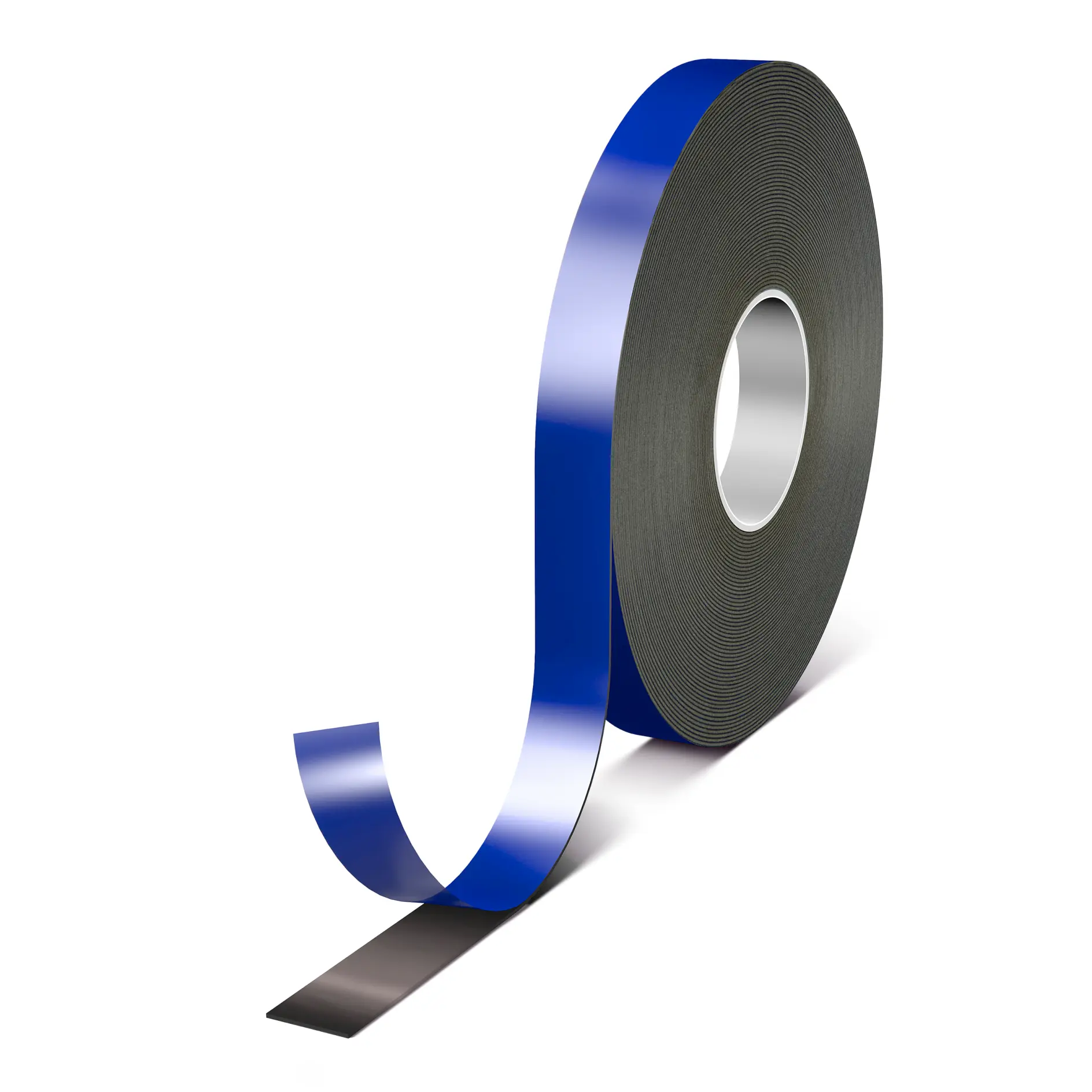

What is Tesa 7805?
Tesa 7805 is a high-performance double-sided acrylic foam tape, designed for reliable bonding in demanding environments. Its viscoelastic acrylic foam core allows it to absorb and redistribute static and dynamic shear forces, while its modified acrylic adhesive ensures high initial tack and long-term adhesion, even on difficult surfaces. Thanks to its cold shock resistance and sealed foam structure, Tesa 7805 maintains strong and durable bonds in both extreme cold and moisture-exposed conditions. Its thin 0.5mm profile makes it suitable for discreet bonding applications that require a sleek appearance.
Composition and Structure
- Base Material: Acrylic foam core for flexibility and shock absorption
- Adhesive Type: Modified acrylic adhesive for high bonding strength and environmental resistance
- Total Thickness: 500µm (0.5mm), providing a balance between flexibility and strength
- Color: Deep black, ensuring concealed bonding for dark surfaces and enhancing design aesthetics
- Elongation at Break: 1400%, offering excellent stretchability and adaptability to material movement
- Adhesion Properties (after 3 days):
- ABS surface: 22N/cm
- Steel surface: 26N/cm
- Temperature Resistance:
- Long-term: Room temperature (stable under standard operating conditions)
- Short-term: Withstands temperature variations for short periods
- Other Features: Closed-cell foam structure providing sealing, waterproofing, and UV resistance
Key Properties
- Strong bonding strength: Secure adhesion to metals, plastics, and composites
- High flexibility and tensile strength (1400% elongation): Adapts to the movement and expansion of bonded components
- Excellent cold shock resistance: Maintains bonding performance in low-temperature environments
- Viscoelastic acrylic foam core: Absorbs and redistributes mechanical stress for long-lasting bonds
- Closed-cell structure: Provides reliable sealing and waterproof protection
- UV and moisture resistant: Ensures performance under outdoor and humid conditions
- Thin profile (0.5mm): Suitable for applications where minimal thickness is required
Applications of Tesa 7805
- Automotive Industry:
- Permanent exterior trim fixation: Suitable for bonding body anti-collision strips, decorative trims, spoilers, antennas, B-pillar trims, nameplates
- Compensation for thermal expansion and contraction of automotive parts, ensuring stable and secure bonds
- Sealing and waterproofing: Ideal for outdoor vehicle components exposed to weather elements
- Electronics Industry:
- Fixation and bonding of internal components in electronic devices that require shock absorption, waterproofing, and moisture resistance
- Suitable for consumer electronics, automotive electronics, and ruggedized devices
- Construction Industry:
- Fixing of decorative materials: Ideal for decorative lines, nameplates, and panels in building facades and interiors
- Invisible bonding due to the deep black color, matching dark building materials
- Provides weather resistance and long-lasting adhesion for outdoor installations
Features & Benefits of Tesa 7805
- Cold shock resistance: Reliable bonding performance even in extremely cold environments
- High tensile strength and flexibility: Adapts to part movements and prevents bond failure under stress
- Strong adhesion (up to 26N/cm on steel): Secure attachment for multiple substrates
- Closed-cell foam: Offers sealing and waterproof protection
- UV and moisture resistance: Suitable for outdoor and humid environments
- Compact thickness (0.5mm): Allows discreet and aesthetic bonding in design-sensitive areas
- Stress dispersion: Absorbs dynamic and static loads, preventing stress concentration
- Deep black color: Concealed bonding for visible parts and components
- Adaptability: Suitable for curved or irregular surfaces due to high flexibility
Comparison with Other Adhesive Tapes
- Thinner (0.5mm) than other Tesa acrylic foams like 7808 (0.8mm) or 7815 (1.5mm), offering low-profile bonding
- Stronger cold shock resistance compared to conventional double-sided tapes
- More flexible and stretchable (1400% elongation) than rigid foam or film tapes
- Better sealing and waterproofing than open-cell foam tapes
- Superior UV and weather resistance over standard adhesive tapes for outdoor use
- Ideal for aesthetic applications where concealed and neat bonding is required
Why Choose VST Malaysia?
VST Malaysia is a trusted supplier of Tesa 7805, offering a high-performance solution for exterior bonding, sealing, and aesthetic applications. Our professional team provides personalized guidance to ensure that you select the right adhesive tape for your specific industrial needs. We prioritize product quality, technical support, and customer satisfaction, making us the reliable partner for your automotive, electronics, and construction bonding solutions.
