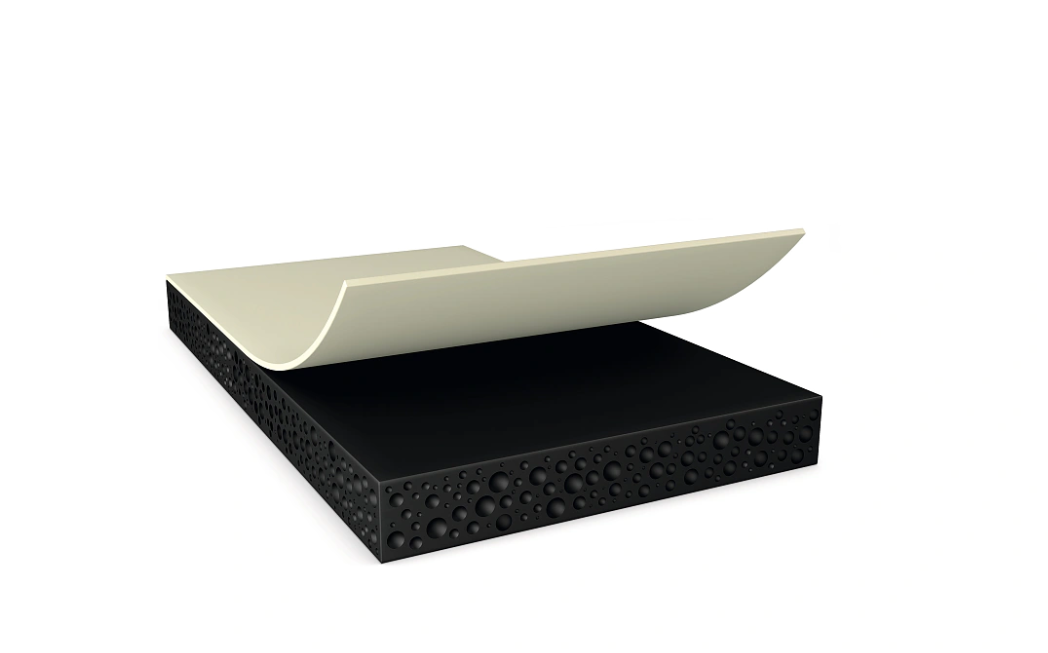

What is Tesa 75130?
Tesa 75130 is a high-performance double-sided acrylic foam tape with a total thickness of 300μm, specifically engineered for applications demanding excellent shock absorption, high bond strength, and stable performance across a wide temperature range. Its black color ensures effective light-shielding, while its waterproof nature makes it suitable for both indoor and outdoor uses. Tesa 75130 is ideal for bonding components in advanced electronics, displays, and structural parts requiring impact and rebound resistance.
Composition and Structure
- Base Material: Modified acrylic foam with high flexibility and shock-absorbing properties
- Adhesive Type: Modified acrylic adhesive for superior bonding strength and long-term durability
- Total Thickness: 300μm for strong cushioning and high-impact absorption
- Tape Weight: 105g/m², providing a substantial adhesive layer for challenging applications
- Liner Type: Transparent PET (polyester) liner, 75μm thick, for easy application and accurate positioning
- Color: Black, offering excellent light-shielding and aesthetic finish
- Waterproof: Ensures reliable performance in moisture-prone environments
- Temperature Resistance:
- Long-term: 110°C for continuous exposure to elevated temperatures
- Bonding Strength:
- Aluminum: 14N/cm (initial), 16N/cm (after 3 days)
- Glass: 15N/cm (initial), 15.5N/cm (after 3 days)
- PC: 13.5N/cm (initial), 16N/cm (after 3 days)
- Steel: 16.5N/cm (initial), 15N/cm (after 3 days)
Key Properties
- Thick cushioning (300μm): Excellent for shock absorption and vibration dampening
- Very high bonding strength: Strong adhesion to metals, plastics, and glass
- Excellent impact performance: Protects bonded components from mechanical shocks
- Superior anti-rebound properties: Prevents edge lifting and ensures long-term flat adhesion
- Waterproof and moisture resistant: Suitable for use in wet and humid environments
- Effective light-shielding (black): Prevents light leakage in electronic and display assemblies
- High temperature resistance (up to 110°C): Maintains performance under heat exposure
- UV and aging resistance: Prolonged durability and stability under UV exposure
- Flexible and conformable: Suitable for complex and curved surfaces
Applications of Tesa 75130
- Screen and Back Cover Installation: Ideal for bonding screens and back covers where impact resistance is crucial, such as in mobile devices, tablets, and monitors
- Display and Flexible OLED Display Assembly: Used for securing display panels, especially in curved and ultra-thin designs, providing high adhesion and light-shielding
- Ultra-thin Bezel and Curved Design Assembly: Perfect for installing slim bezels and complex curved components in modern electronics and automotive displays
- Waterproof Structure Assembly: Applied in the creation of waterproof seals and joints, ensuring durability and resistance to water intrusion in electronic and industrial products
Features & Benefits of Tesa 75130
- High shock absorption (300μm foam thickness): Protects components from mechanical damage
- Extremely strong adhesion: Reliable bonds on a variety of surfaces including aluminum, glass, PC, and steel
- Excellent anti-rebound performance: Maintains long-term adhesion without lifting or warping
- Waterproof: Suitable for sealing and bonding in moisture-sensitive environments
- Effective light-blocking (black): Prevents light bleed and enhances display quality
- Heat-resistant (up to 110°C): Suitable for high-temperature assembly processes
- UV resistant and anti-aging: Ensures long-term outdoor durability without degradation
- Conformable to curves and edges: Facilitates bonding on irregular surfaces and complex geometries
Comparison with Other Adhesive Tapes
- Thicker and more shock-absorbent than typical thin acrylic tapes: Offers enhanced vibration and impact resistance
- Higher bonding strength in the high-thickness range: Provides superior holding power under stress
- Better anti-rebound than regular foam tapes: Prevents lifting over time, even on difficult surfaces
- Superior light-shielding due to black color: Outperforms clear or white tapes in light-sensitive assemblies
- Waterproof, unlike some thin bonding tapes: Suitable for both electronic and outdoor applications
- Maintains strength in high temperatures (up to 110°C): More heat-resistant than standard double-sided tapes
- UV and weather resistant: Ensures outdoor usability where others may fail
Why Choose VST Malaysia?
VST Malaysia offers high-performance adhesive solutions such as Tesa 75130, which meet the rigorous demands of modern industrial applications. With superior impact resistance, strong adhesion, and excellent environmental durability, Tesa 75130 is the ideal choice for advanced electronics, display assemblies, and waterproof construction. Our commitment to quality and technical expertise ensures that you receive not just products but tailored solutions that optimize performance, durability, and efficiency in your applications. Partner with VST Malaysia for reliable adhesive technologies trusted by industry leaders.
