What is Tesa 67310?
Tesa 67310 is a matte black single-sided adhesive tape composed of an ultra-thin polyimide film substrate, coated with a special anti-rebound acrylic adhesive. The tape’s unique properties make it ideal for applications requiring insulation, flame retardancy, and resistance to high temperatures and chemicals. Its ultra-thin design and matte finish also provide outstanding anti-scratch and anti-fingerprint performance.

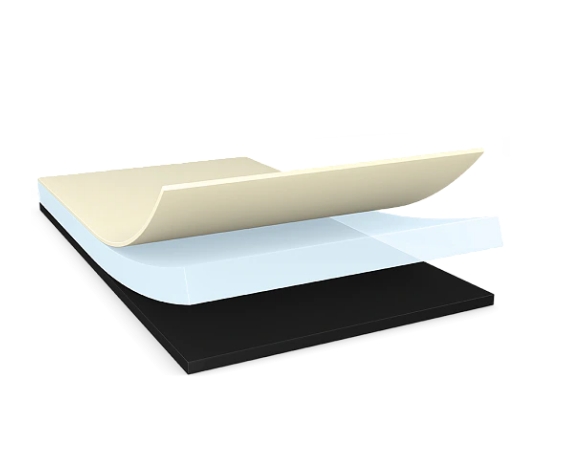

Composition and Structure
- Base material: Ultra-thin polyimide film
- Adhesive type: Special anti-rebound acrylic adhesive
- Surface color: Matte black with a gloss of 2.5%
- Total thickness: 10 microns (0.01 mm)
- Release paper: 50 microns, transparent PET (polyester) film
Key Properties
- Anti-scratch and anti-fingerprint: Provides excellent resistance to surface marks and smudges
- Anti-rebound performance: Maintains stable bonding even under external stress
- Chemical and temperature resistance: Exceptional resistance to chemical solvents and high temperatures
- Insulation properties: Dielectric breakdown voltage of up to 1500V, suitable for electrical insulation applications
- Thin and flexible: Ultra-thin at 10 microns, ideal for applications requiring minimal tape thickness
Applications of Tesa 67310
- Ferrite and graphite sheet protection: Protects delicate components from damage during handling or transport
- NFC antenna shielding: Provides reliable shielding in near-field communication (NFC) devices
- Lithium battery edge wrapping: Ensures safety and stability in lithium battery applications by providing high-temperature and insulation protection
- Other applications: Ideal for wrapping or fixing components in industries requiring flame retardancy or high-temperature protection
Features & Benefits of Tesa 67310
- Excellent anti-scratch and anti-fingerprint properties: Keeps surfaces clean and free from visible marks
- High-performance insulation: Provides excellent electrical insulation with high dielectric breakdown voltage
- Strong resistance to chemicals and high temperatures: Performs well even under harsh environmental conditions
- Flexible and thin: The tape’s thin design makes it ideal for use in compact or sensitive applications
- Easy handling: The matte black finish offers a professional appearance and easy handling during application
Comparison with Other Adhesive Tapes
- Tesa 67310’s polyimide substrate offers superior thermal stability compared to standard tapes, making it ideal for high-temperature applications
- The tape’s exceptional resistance to solvents and chemicals sets it apart from conventional adhesive tapes
- Compared to other insulating tapes, Tesa 67310 provides better anti-rebound performance, ensuring more stable long-term adhesion
