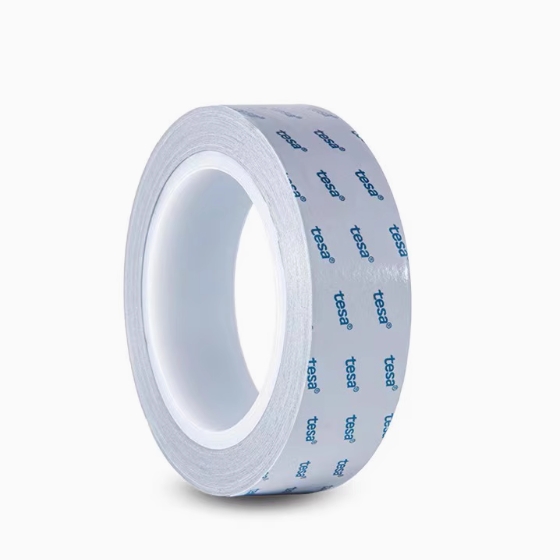

What is Tesa 60253?
Tesa 60253 is a high-quality conductive adhesive tape designed for demanding applications in electronics, offering strong adhesion and excellent conductivity. It maintains reliable performance even in extreme temperatures and humidity, ensuring secure and effective connections in electromagnetic shielding and grounding.
Composition and Structure
- Substrate: Conductive textile
- Adhesive system: Conductive acrylic
- Release paper: PE coated, available in white or blue
- Tape thickness: 70µm
- Total thickness including release paper: 190µm
- Standard width: 50mm, 1040mm, and customizable lengths
- Release paper thickness: 120µm
Key Properties
- Excellent XYZ-direction conductivity under high temperature and humidity
- Contact resistance (Z direction, initial): 0.05 ohms/square inch
- Surface resistance (X-Y direction): 0.2 ohms/square
- High adhesion strength: 9.7 N/cm on steel (after 14 days)
- Excellent tear resistance and dimensional stability
- Short-term high temperature resistance: up to 180°C, with some sources stating 200°C
- Long-term temperature resistance: up to 100°C
- Excellent static shear resistance at 40°C
Applications of Tesa 60253
- EMI shielding and grounding applications: Tesa 60253 is widely used to reduce electromagnetic interference and improve the performance of electronic and communication equipment.
- Electrostatic discharge applications: The tape effectively eliminates static electricity, providing protection for sensitive electronic components in environments where static buildup is a concern.
- Other conductive applications: It is also suitable for other situations requiring conductive properties, such as conductive connections, repairs, and grounding in various industries including home appliances and industrial settings.
Features & Benefits of Tesa 60253
- Reliable conductivity in XYZ directions even under extreme environmental conditions
- High adhesion strength ensures lasting performance in demanding applications
- Tear-resistant substrate provides excellent dimensional stability
- Flexible and ductile under external forces, avoiding deformation
- Wide range of applications from EMI shielding to electrostatic discharge protection
Comparison with Other Adhesive Tapes
- Tesa 60253 provides superior high-temperature resistance compared to similar tapes in the series, such as Tesa 60252
- Offers higher adhesion strength and dimensional stability than Tesa 60251
- Maintains consistent performance in both high humidity and high-temperature environments, making it more reliable than non-conductive or lower-grade adhesive tapes
