What is Tesa 60216?
Tesa 60216 is a high-performance conductive adhesive foam tape designed for electronic applications. Its compressible foam substrate provides excellent conductivity, cushioning, and impact resistance. This tape is ideal for use in environments requiring high adhesion, temperature resistance, and superior conductivity for shielding and grounding.
Composition and Structure
- Substrate: Conductive foam
- Adhesive system: Conductive acrylic
- Release paper type: PE coated paper
- Release paper color: White/blue
- Tape thickness: 1000μm (1mm)
- Release paper thickness: 120μm
- Color: Gray
Key Properties
- Highly compressible foam with low closing force and excellent recovery performance
- High conformability to changes in the adhesive surface
- Excellent XYZ direction conductivity, even under high temperature and high humidity conditions
- High adhesion to stainless steel and other surfaces, even after 14 days
- Excellent impact resistance and cushioning properties
- Stable foam that does not shed particles easily
Applications of Tesa 60216

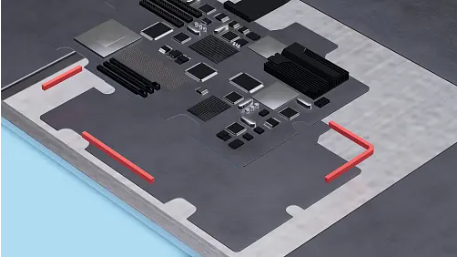

- EMI shielding and grounding applications: Tesa 60216 is perfect for use in electronic devices, communication equipment, and other electronic components requiring reliable conductive connections and shielding.
- Cushioning and protection applications: The foam substrate offers exceptional impact resistance, making it suitable for protecting sensitive electronic components from damage.
- Electrostatic discharge (ESD) protection: Ideal for use in environments where electrostatic discharge is a concern, helping to prevent damage to sensitive components.
Features & Benefits of Tesa 60216
- Highly compressible and flexible foam, ideal for applications requiring conformability to various surface shapes
- Excellent adhesion and conductivity for long-term reliability in harsh environments
- Superior temperature resistance (short-term up to 200°C) ensures stability in high-temperature applications
- Impact-resistant and cushioning properties make it perfect for protecting sensitive components
- Stable foam structure minimizes particle shedding, ensuring cleanliness in sensitive environments
Comparison with Other Adhesive Tapes
- Tesa 60216 offers superior compressibility and impact resistance compared to traditional non-foam conductive tapes, making it ideal for cushioning applications.
- Unlike thinner conductive tapes, Tesa 60216’s thicker foam provides better shielding and cushioning effects, which enhances the durability and protection of sensitive components.
- It also outperforms other tapes in terms of temperature resistance, with a short-term temperature resistance up to 200°C, making it suitable for more demanding environments.
Why Choose VST Malaysia?
VST Malaysia offers reliable Tesa products tailored to your needs, with custom die-cutting options and expert advice. We ensure you get the best solutions for EMI shielding, grounding, and electrostatic discharge protection with excellent product performance and customer service.
