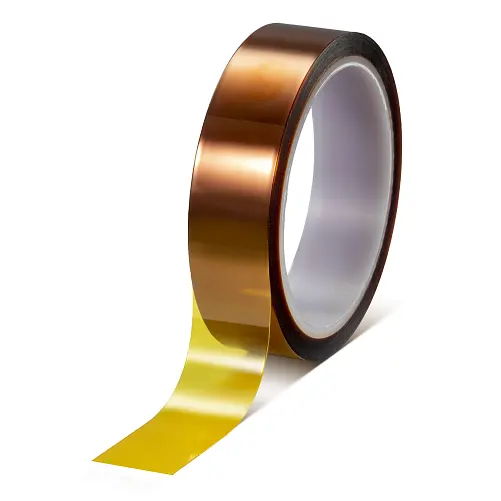

What is Tesa 51407?
Tesa 51407 is a high-temperature resistant polyimide tape coated with a special silicone adhesive system. Known for its outstanding thermal and chemical resistance, this tape performs reliably in extreme environments such as wave soldering, powder coating, and high-heat insulation tasks. Its conformability, electrical insulation properties, and clean removability make it ideal for both industrial and electronic use.
Composition and Structure
- Material: Polyimide film
- Adhesive type: Silicone adhesive
- Color: Yellow (sometimes described as brown)
- Thickness: Typically 0.04 mm (some data indicate up to 0.062 mm)
- Standard width: Commonly 1000 mm; can be cut to widths such as 3 mm or 5 mm
- Length: Generally 33 m per roll
- Flame retardancy: Meets UL510 and DIN EN 60454-2 (VDE 0340-2) standards
Key Properties
- Long-term heat resistance: 200°C
- Short-term heat resistance: Up to 260°C
- Strong adhesion to metals, plastics, and other surfaces
- Excellent conformability for complex or curved surfaces
- Clean removal without adhesive residue
- High breakdown voltage and electrical insulation
- Resistant to chemical corrosion
- Flame retardant and safe for critical applications
Applications of Tesa 51407
- Electronic industry:
- Wave soldering masking
- High-temperature wire and cable wrapping
- Insulation and protection of internal components
- Automotive industry:
- Wiring harness protection near engine heat zones
- Masking during automotive painting processes
- Electronic component assembly
- Chemical industry:
- Shielding and protection in corrosive environments
- Surface masking on equipment or piping
- Other industrial uses:
- 3D printer bed insulation
- Powder coating applications
- Any temporary high-temperature shielding and masking
Features & Benefits of Tesa 51407
- Reliable performance in extreme heat up to 260°C
- Strong silicone adhesion resists shifting or lifting during operation
- No residue after removal, reducing cleanup time
- High dielectric strength protects sensitive electronics
- Flame-retardant for added operational safety
- Resists chemical degradation for consistent long-term use
- Easily cut to custom widths for various applications
Comparison with Other Adhesive Tapes
- Outperforms standard polyester tapes in temperature tolerance
- Offers better chemical and heat resistance than general-purpose masking tapes
- Cleaner removal compared to other high-temp tapes with acrylic adhesives
- More flexible and conformable than thicker heat-resistant films
- Superior electrical insulation compared to basic thermal tapes
Why Choose VST Malaysia?
VST Malaysia delivers high-quality adhesive solutions like Tesa 51407 to meet the toughest industrial and electronic challenges. Whether you need precision masking, extreme heat protection, or residue-free performance, we supply products that support your workflow with reliability and consistency. Choose VST Malaysia for fast delivery, expert advice, and trusted tape solutions that perform under pressure.
